Stainless Steel Shim Kits
In addition to specialising in stainless steel shim, shim packers, and brass shim sheets, PP Shim is proud to supply Australia with a range of slotted shim kits, perfect for levelling equipment during installation and motor applications.

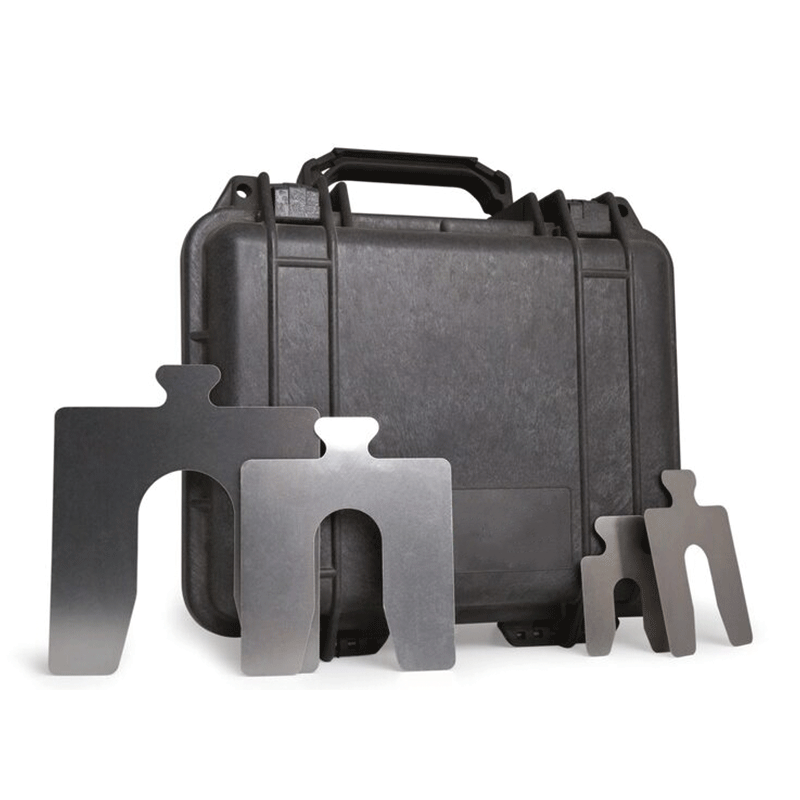

STAINLESS STEEL SLOTTED SHIMS
Please find outlined below our metal slotted shim kit range.
| Sizing Chart (10 Shims = Packet) |
| Size | Slot Width | Slot Height | |
| 50 x 50 | A | 16mm | 39mm |
| 75 x 75 | B | 22mm | 55mm |
| 100 x 100 | C | 32mm | 77mm |
| 125 x 125 | D | 45mm | 95mm |
| 200 x 200 | E | 55mm | 147mm |
| Part # | Size | Thickness (mm) | Thickness (inch) | Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81205 | A | 0.025 | (0.001″) | PP81305 | B | 0.025 | (0.001″) |
| PP81210 | A | 0.05 | (0.002″) | PP81310 | B | 0.05 | (0.002″) |
| PP81213 | A | 0.075 | (0.003″) | PP81313 | B | 0.075 | (0.003″) |
| PP81215 | A | 0.10 | (0.004″) | PP81315 | B | 0.10 | (0.004″) |
| PP81218 | A | 0.125 | (0.005″) | PP81318 | B | 0.125 | (0.005″) |
| PP81220 | A | 0.20 | (0.008″) | PP81320 | B | 0.20 | (0.008″) |
| PP81225 | A | 0.25 | (0.010″) | PP81325 | B | 0.25 | (0.010″) |
| PP81230 | A | 0.40 | (0.015″) | PP81330 | B | 0.40 | (0.015″) |
| PP81235 | A | 0.50 | (0.020″) | PP81335 | B | 0.50 | (0.020″) |
| PP81240 | A | 0.70 | (0.027″) | PP81340 | B | 0.70 | (0.027″) |
| PP81245 | A | 1.00 | (0.039″) | PP81345 | B | 1.00 | (0.039″) |
| PP81250 | A | 2.00 | (0.079″) | PP81350 | B | 2.00 | (0.079″) |
| PP81255 | A | 3.00 | (0.118″) | PP81355 | B | 3.00 | (0.118″) |
| PP81260 | A | 4.00 | (0.157″) | PP81360 | B | 4.00 | (0.157″) |
| PP81265 | A | 6.00 | (0.236″) | PP81365 | B | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) | Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81405 | C | 0.025 | (0.001″) | PP81505 | D | 0.025 | (0.001″) |
| PP81410 | C | 0.05 | (0.002″) | PP81510 | D | 0.05 | (0.002″) |
| PP81413 | C | 0.075 | (0.003″) | PP81513 | D | 0.075 | (0.003″) |
| PP81415 | C | 0.10 | (0.004″) | PP81515 | D | 0.10 | (0.004″) |
| PP81418 | C | 0.125 | (0.005″) | PP81518 | D | 0.125 | (0.005″) |
| PP81420 | C | 0.20 | (0.008″) | PP81520 | D | 0.20 | (0.008″) |
| PP81425 | C | 0.25 | (0.010″) | PP81525 | D | 0.25 | (0.010″) |
| PP81430 | C | 0.40 | (0.015″) | PP81530 | D | 0.40 | (0.015″) |
| PP81435 | C | 0.50 | (0.020″) | PP81535 | D | 0.50 | (0.020″) |
| PP81440 | C | 0.70 | (0.027″) | PP81540 | D | 0.70 | (0.027″) |
| PP81445 | C | 1.00 | (0.039″) | PP81545 | D | 1.00 | (0.039″) |
| PP81450 | C | 2.00 | (0.079″) | PP81550 | D | 2.00 | (0.079″) |
| PP81455 | C | 3.00 | (0.118″) | PP81555 | D | 3.00 | (0.118″) |
| PP81460 | C | 4.00 | (0.157″) | PP81560 | D | 4.00 | (0.157″) |
| PP81465 | C | 6.00 | (0.236″) | PP81565 | D | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) | Shim Kits | ||
| PP81810 | E | 0.05 | (0.002″) | PP81945 | A | 260 pieces |
| PP81815 | E | 0.10 | (0.004″) | PP81950 | AB | 520 pieces |
| PP81820 | E | 0.20 | (0.008″) | PP81955 | B | 260 pieces |
| PP81825 | E | 0.25 | (0.010″) | PP81960 | BC | 520 pieces |
| PP81830 | E | 0.40 | (0.015″) | PP81965 | C | 260 pieces |
| PP81835 | E | 0.50 | (0.020″) | PP81970 | CD | 520 pieces |
| PP81840 | E | 0.70 | (0.027″) | PP81975 | D | 260 pieces |
| PP81845 | E | 1.00 | (0.039″) | PP81980 | ABC | 780 pieces |
| PP81850 | E | 2.00 | (0.079″) | PP81985 | E | 180 pieces |
| PP81855 | E | 3.00 | (0.118″) | |||
| PP81860 | E | 4.00 | (0.157″) | |||
| PP81865 | E | 6.00 | (0.236″) |
Note: Slotted Shim Kits = 20 Shims per thickness
Kits A – ABC incl 0.025 – 3.00 / Kit E incl 0.05 – 2.00
Contact us today on 02 4646 1166 for a quote or to discuss the options available with our slotted shims and shim kits.
Slotted Shim FAQs
What are slotted shims?
Slotted shims come in various forms, often featuring a U-shaped slot. They are commonly used as spacers or placed around bolts and screws. Some designs include tabs for easier insertion.
What are the applications of slotted shims?
Slotted shims are used to ensure precise alignment and balance in assembled machine components. They help maintain consistent alignment, preventing costly equipment damage.
How do I choose the right size slotted shim?
To select the right size, measure the gap or spacing and ensure the shim’s slot dimensions and thickness match your needs. If you need assistance with ideal sizing, get in touch with our expert team.
Can slotted shims be used in outdoor or demanding environments?
It depends on the material. Metal slotted shims are generally suitable for harsh environments, while plastic slotted shims are designed for specific conditions. Always check the product specifications for environmental compatibility.
Are slotted shims reusable?
Slotted shims can typically be reused if in good condition. Inspect them before reuse to ensure they meet your requirements. If they’re no longer suitable, call us at 02 4646 1166 for assistance with replacements.
What does a slotted shim kit include?
A slotted shim kit usually contains a range of sizes and thicknesses for adjusting and aligning components, with some kits also including spacers or installation tools.
